Rear Box Graders

Groundworks

Designed for levelling ground and tracks. The height-adjustable ripper tines break up the soil.
The tines can be removed to use as a grader blade, ideal for grading bridleways and driveways to fill potholes and smooth the surface.

Designed for practical day-to-day use, this range combines robust Winton engineering with features that matter on the job:

  • Robust heavy duty & height adjustable tines
  • Reversible & replaceable blades
  • Reinforced A frame

Supplied and supported by Robert Lee Plant, the Rear Box Graders is available with expert advice on specification, tractor compatibility and the right model for your horsepower and working conditions.

Suitable HP Range

  • 20-30 HP
  • 30-40 HP
  • 40-50 HP
  • 50 HP and above
  • Up to 20 HP
Green John Deere tractor with a large red Winton mowing attachment on a grassy field.**(informative)

Model Specifications

Model No: W-RB04 W-RB05 W-RB06
Working width (cm) 120 150 180
Tine quantity 4 5 6
HP Range 16+ 20+ 25+
Weight (kg) 190 250 310

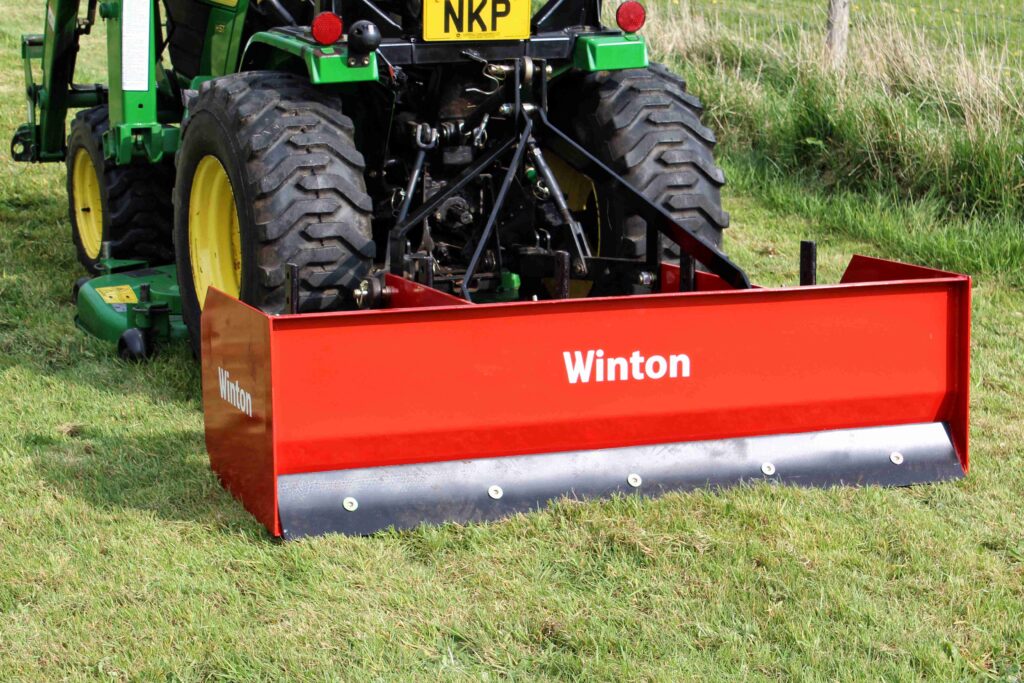

Rear view of a green tractor with large tires pulling a bright red front-mounted implement labeled 'Winton' in a grassy field.

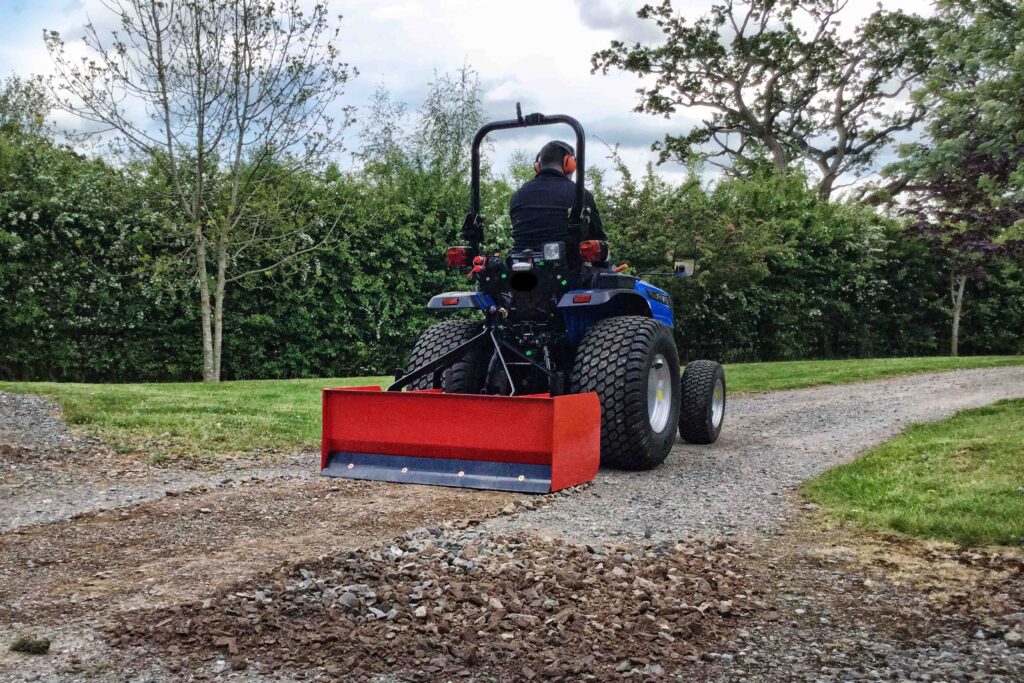

Person wearing orange hearing protection sits on a blue tractor with a large red front blade on a gravel path, surrounded by trees and bushes in a park-like setting.
