600 Series Loader

Description
Videos
Technical Info

The Avant 600 series is the ultimate all-rounder, combining power, lift capacity, and professional hydraulics in a compact design. With a 1.1-tonne lift capacity, it’s perfect for landscaping, groundcare, construction, farming, and more. Its compact size allows easy transport, fitting both the loader and attachments on a trailer or even inside a van.

A standard telescopic boom provides excellent lift height and reach, with smooth, adjustable control for fast and efficient handling. The 4×4 hydrostatic drive ensures top-tier traction, while Avant’s renowned stability and visibility make operation easy and safe.

With a full range of cab options and over 200 attachments available, the 600 series offers the flexibility to tackle any job, all year round.

Lift Capacity

1100kg

Lift Height

2.8m

Engine Power

26hp

Drive Speed

20km/h

Length

2.57m

Weight

1500kg

Avant 630

SPECIFICATIONS

Length	2570 mm
Width	1290 mm
Height	2035 mm
Weight	1330 + 170 kg
Standard wheels	26×12.00-12″ Grass/ TR
Transmission, drive	hydrostatic Avant Optidrive^TM
Pulling force max.	1200 kp
Drive speed max.	12 km/h
Aux. hydraulics oil flow / pressure	44 l/min 200 bar
Turning radius inside/outside	900 / 2190 mm
Max. lifting height	2835 mm
Tipping load	1100 kg
Max. breakout force / 50 cm	1250 kg
Engine make and type	Kubota D1105, 3-cyl
Engine output (ECE R120)	19 kW (26 hp)
Maximum torque	72 Nm @ 2200 rpm
Fuel	Diesel
product no.	A424286

WIDTH

WHEEL SIZE	Profile	Width
27 x 8.50 – 15 *)	tractor	1030 mm
23 x 8.50 – 12	tractor or grass	1080 mm
23 x 10.50 – 12	tractor or grass	1130 mm
26 x 12.00 – 12	tractor or grass	1290 mm
320/60 – 12 HD	tractor	1290 mm
26.5 x 14.00 – 12**	grass	1420 mm

*) bigger wheels will increase the total machine height by 13 mm

**) requires 40 mm spacers on the wheel hubs

***) Road traffic light kit width for ROPS safety frame is 1090 mm

HEIGHT WITH CAB

Wheel size	26×12.00-12 & 320/60-12*	27×8.50-15
L Cab	2035 mm	2048 mm
LX Cab	2025 mm	2038 mm
DLX Cab	2045 mm	2058 mm
DLX Cab with A/C on the roof	2181 mm	2194 mm

*) with 23″ wheels the machine is 15 mm lower

DIMENSIONS

Avant 635i

SPECIFICATIONS

Length	2610 mm
Width (with standard wheels)	1290 mm
Height (with standard wheels)	2060 mm
Weight	1570 kg
Standard wheels	26×12.00-12″ Grass/TR
Transmission, drive	hydrostatic Avant Optidrive^TM
Pulling force max.	1000 kp
Drive speed max.	12 km/h
Aux. hydraulics oil flow / pressure	66 l/min 200 bar
Turning radius inside/outside	940 / 2250 mm
Max. lifting height	2835 mm
Tipping load	1190 kg
Max. breakout force / 50 cm	1250 kg
Engine make and type	Kohler KSD 1403NA Stage V, 3-cyl.
Engine output (Ece r120)	19 kW (26 hp)
Maximum torque	90 Nm @ 1800 rpm
Fuel	Diesel
product no.	M635i

WIDTH

WHEEL SIZE	Profile	Width
27 x 8.50 – 15 *)	tractor	1030 mm
23 x 8.50 – 12	tractor or grass	1080 mm
23 x 10.50 – 12	tractor or grass	1130 mm
26 x 12.00 – 12	tractor or grass	1290 mm
320/60 – 12 HD	tractor	1290 mm
320/55 – 15	tractor or grass	1305 mm
26,5 x 14.00 – 12**	grass	1420 mm

*) bigger wheels will increase the total machine height by 13 mm

**) requires 40 mm spacers on the wheel hubs

HEIGHT WITH CAB

Wheel size	26×12.00-12 & 320/60-12*	320-55/15
Cab GT	2070 mm	2100 mm

*) with 23″ wheels the machine is 15 mm lower

DIMENSIONS

Avant 640i

SPECIFICATIONS

Length	2610 mm
Width (with standard wheels)	1290 mm
Height (with standard wheels)	2060 mm
Weight	1580 kg
Standard wheels	26×12.00-12″ Grass / TR
Transmission, drive	hydrostatic Avant Optidrive^TM
Pulling force max.	1000 kp
Drive speed max.	23 km/h
Aux. hydraulics oil flow / pressure	66 l/min 200 bar
Turning radius inside/outside	940 / 2250 mm
Max. lifting height	2835 mm
Tipping load	1190 kg
Max. breakout force / 50 cm	1250 kg
Engine make and type	Kohler KSD 1403NA Stage V, 3-cyl.
Engine output (ece r120)	19 kW (26 hp)
Maximum torque	90 Nm @ 1800 rpm
Fuel	Diesel
product no.	M640i

WIDTH

WHEEL SIZE	Profile	Width
27 x 8.50 – 15 *)	tractor	1030 mm
23 x 8.50 – 12	tractor or grass	1080 mm
23 x 10.50 – 12	tractor or grass	1130 mm
26 x 12.00 – 12	tractor or grass	1290 mm
320/60 – 12 HD	tractor	1290 mm
320/55 – 15	tractor or grass	1305 mm
26,5 x 14.00 – 12**	grass	1420 mm

*) bigger wheels will increase the total machine height by 13 mm

**) requires 40 mm spacers on the wheel hubs

HEIGHT WITH CAB

Wheel size	26×12.00-12 & 320/60-12*	320-55/15
Cab GT	2070 mm	2100 mm

*) with 23″ wheels the machine is 15 mm lower

DIMENSIONS

Avant 645i

SPECIFICATIONS

	Stage V
Length	2610 mm
Width	1290 mm
Height	2060 mm
Weight	1620 kg
Standard wheels	26×12.00-12″ Grass / TR
Transmission, drive	Hydrostatic Avant Optidrive^TM
Pulling force max.	1400 kp
Drive speed max.	12 km/h
Aux. hydraulics oil flow / pressure	75 l/min 200 bar
Turning radius inside/outside	940 / 2250 mm
Max. lifting height	2835 mm
Tipping load	1190 kg
Max. breakout force / 50 cm	1250 kg
Engine make and type	Kubota V1505-CR-TE5, Stage V, 4-cyl.
Engine output (ece r120)	33 kW (44 hp)
Maximum torque	118 Nm @ 2000 rpm
Fuel	Diesel
product no	M645

WIDTH

WHEEL SIZE	Profile	Width
27 x 8.50 – 15 *)	tractor	1030 mm
23 x 8.50 – 12	tractor or grass	1080 mm
23 x 10.50 – 12	tractor or grass	1130 mm
26 x 12.00 – 12	tractor or grass	1290 mm
320/60 – 12 HD	tractor	1290 mm
320/55 – 15	tractor or grass	1305 mm
26.5 x 14.00 – 12**	grass	1420 mm

*) bigger wheels will increase the total machine height by 13 mm
**) requires 40 mm spacers on the wheel hubs

HEIGHT WITH CAB

Wheel size	26×12.00-12 & 320/60-12*	320-55/15
GT Cab	2070 mm	2100 mm

*) with 23″ wheels the machine is 15 mm lower

Power Meets Agility

Lift Capacity

Lift Height

Engine Power

Drive Speed

Length

Weight

Avant 630

SPECIFICATIONS

WIDTH

HEIGHT WITH CAB

DIMENSIONS

Avant 635i

SPECIFICATIONS

WIDTH

HEIGHT WITH CAB

DIMENSIONS

Avant 640i

SPECIFICATIONS

WIDTH

HEIGHT WITH CAB

DIMENSIONS

Avant 645i

SPECIFICATIONS

WIDTH

HEIGHT WITH CAB

DIMENSIONS

Avant 650i

Models in this series

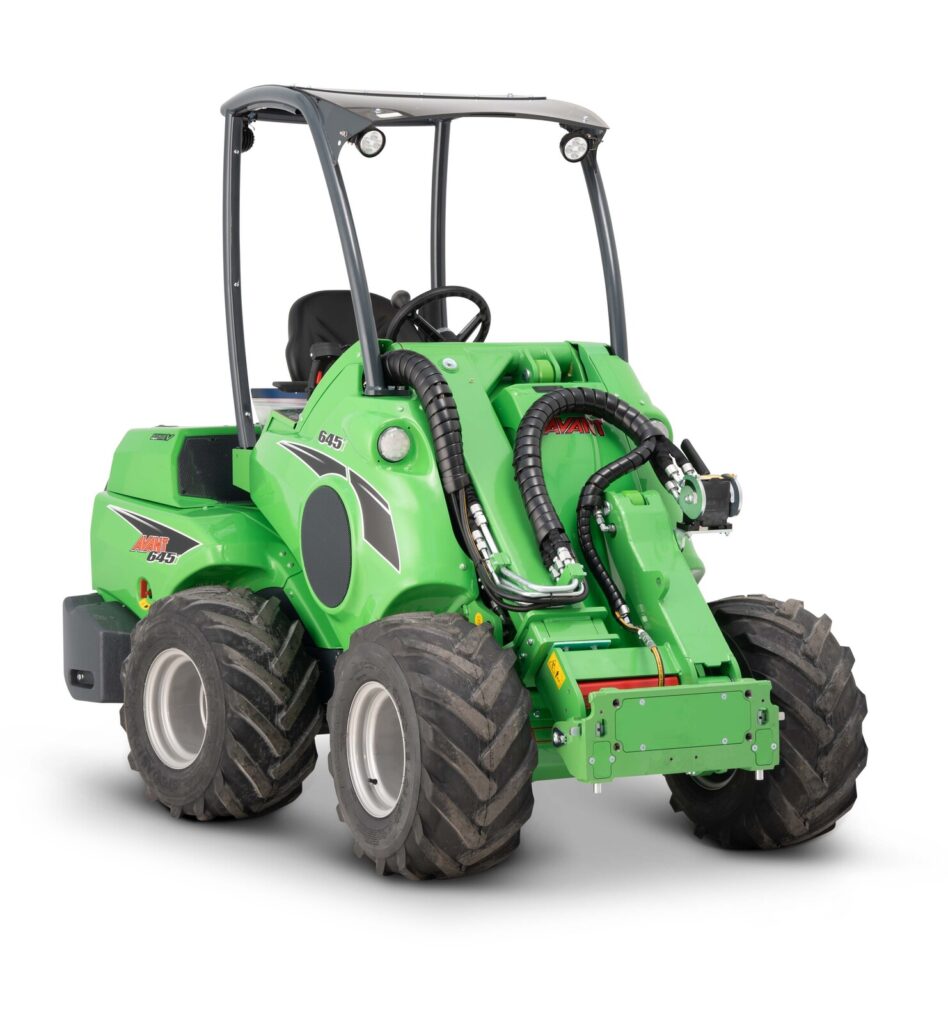

Avant 645i

Refined Hydraulics for Demanding Work

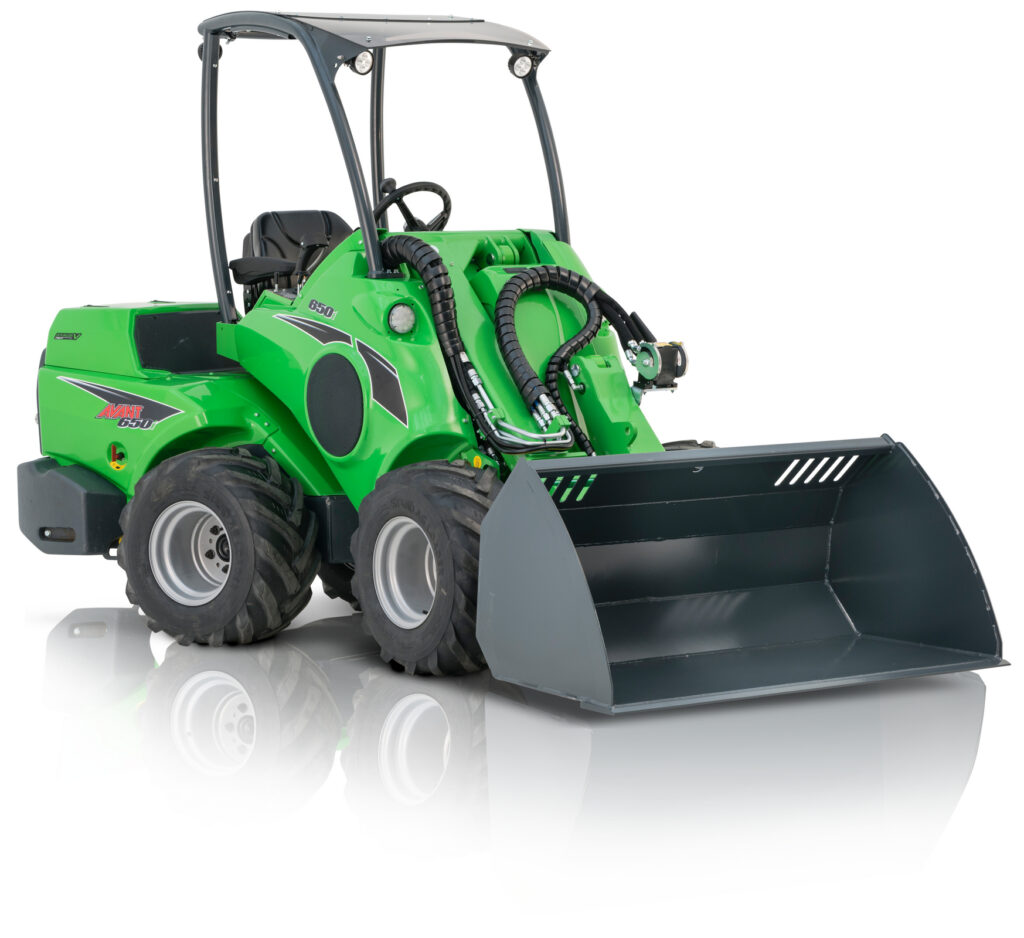

Avant 650i

Maximum 600 Series Capability

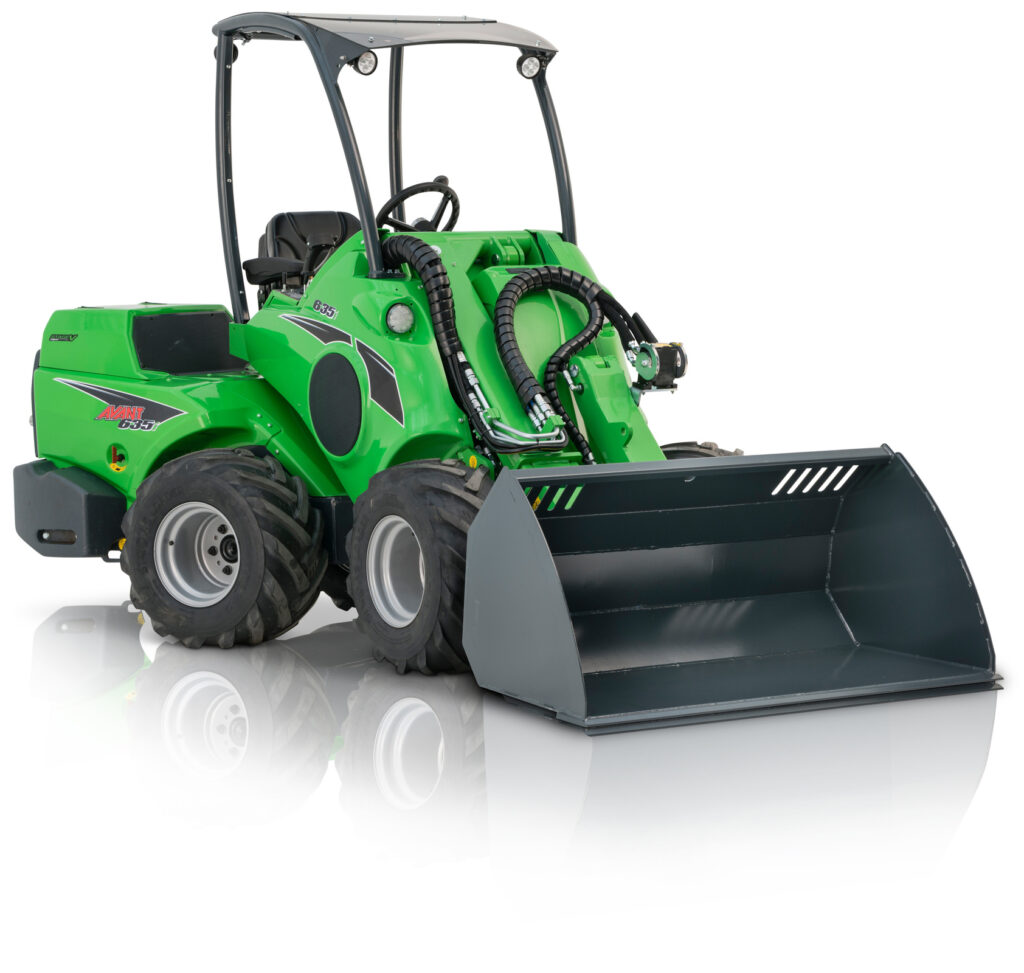

Avant 635i

Stage V Power, Compact Footprint

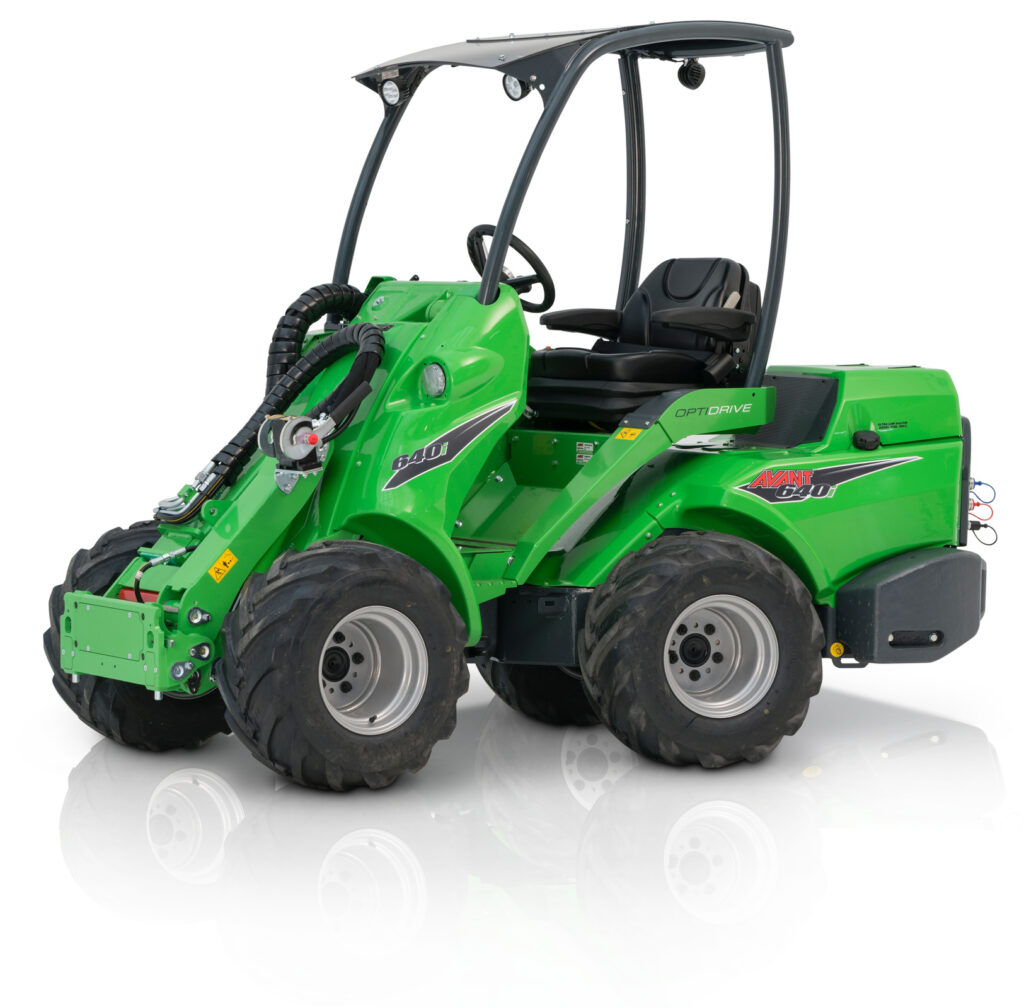

Avant 640i
